Impact
| Geometrie Krush Impact | S | M | L | XL |
|---|---|---|---|---|
| Lichaamslengte | Tot 172 cm | 172 cm - 179 cm | 179 cm - 186 cm | 186 cm - 195 cm |
| A. Zadelhoogte | 610 - 740 mm | 650 - 780 mm | 690 - 820 mm | 770 - 880 mm |
| B. Lengte zitbuis | 390 mm | 430 mm | 470 mm | 530 mm |
| C. Hoek zitbuis | 73 ° | 73 ° | 73 ° | 73 ° |
| D. Lengte bovenbuis | 582 mm | 615 mm | 638 mm | 674 mm |
| E. Lengte balhoofdbuis | 90 mm | 100 mm | 110 mm | 130 mm |
| F. Hoek balhoofdbuis | 69,5 ° | 69,5 ° | 69,5 ° | 69,5 ° |
| G. Lengte achterbrug | 426 mm | 426 mm | 426 mm | 426 mm |
| H. Wielbasis | 1056 mm | 1116 mm | 1140 mm | 1177 mm |
| I. Stack | 584 mm | 606 mm | 615 mm | 634 mm |
| J. Reach | 390 mm | 430 mm | 450 mm | 480 mm |
| Onderdelen Krush Impact | Merk | Type | Specificatie |
|---|---|---|---|

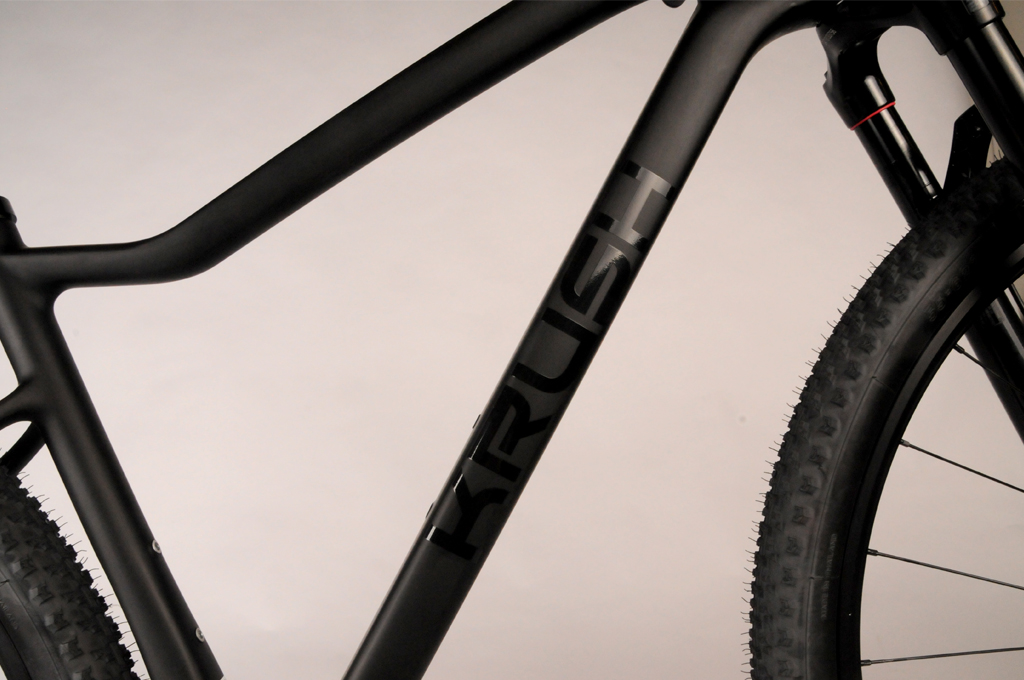

| Frame | Krush Impact | Hardtail boost frame | T1100 carbon |

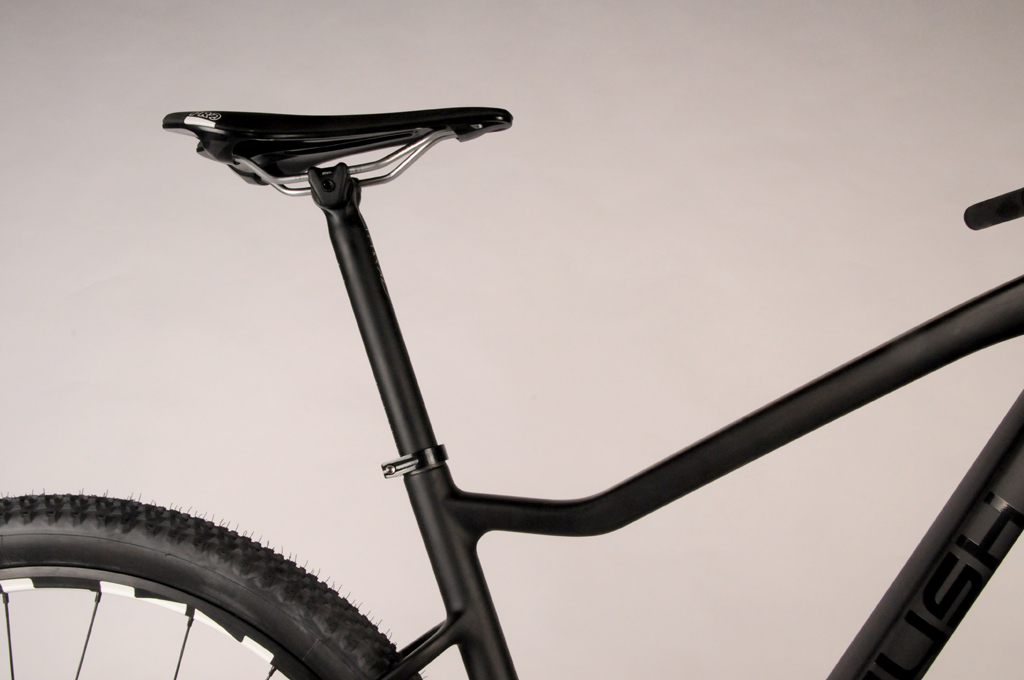

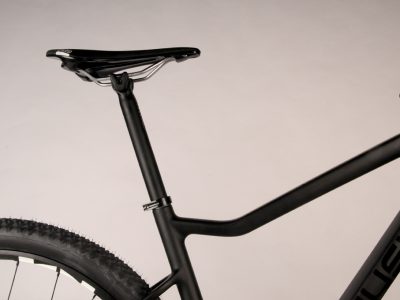

| Zadelpen | Pro | LT | 31.6mm 400mm 0mm Offset |

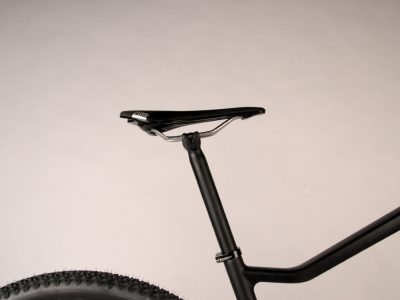

| Zadel | Pro | Falcon | AF CrMo Zwart 142mm |

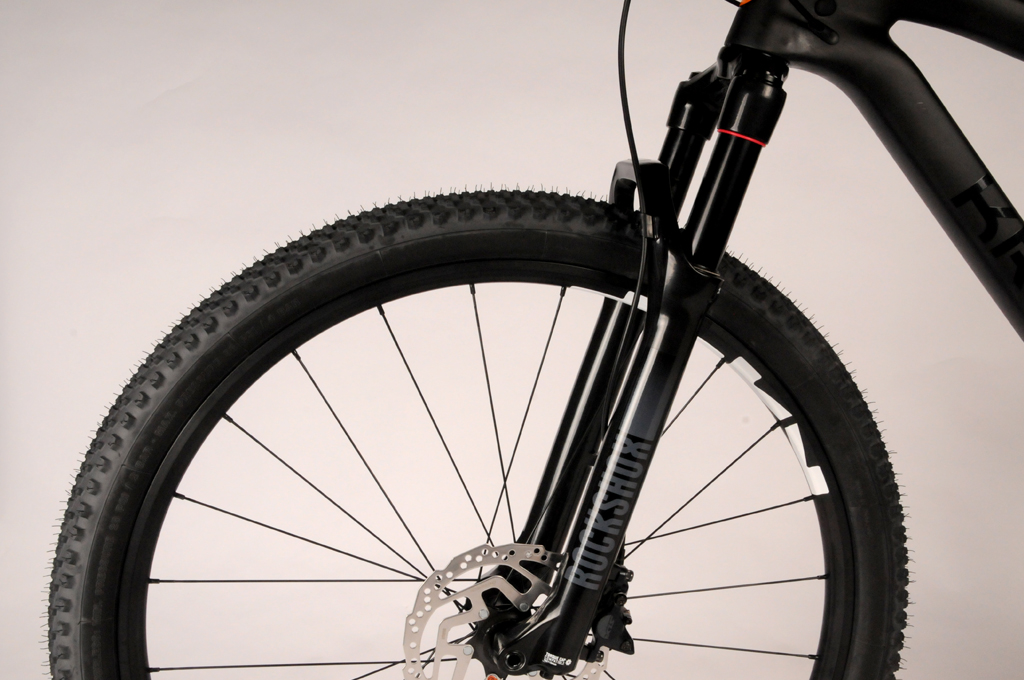

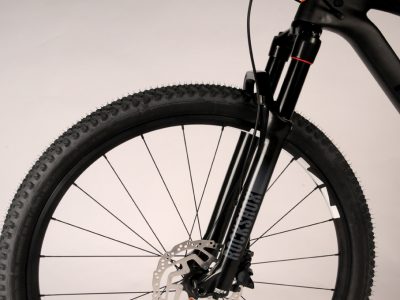

| Voorvork | Rockshox | 35 Gold RL | 100mm Veerweg 44mm Offset |
| Wielset | Shimano | MT500 Voorwiel MT501 Achterwiel | CL 15mm Boost CL 12mm Boost |

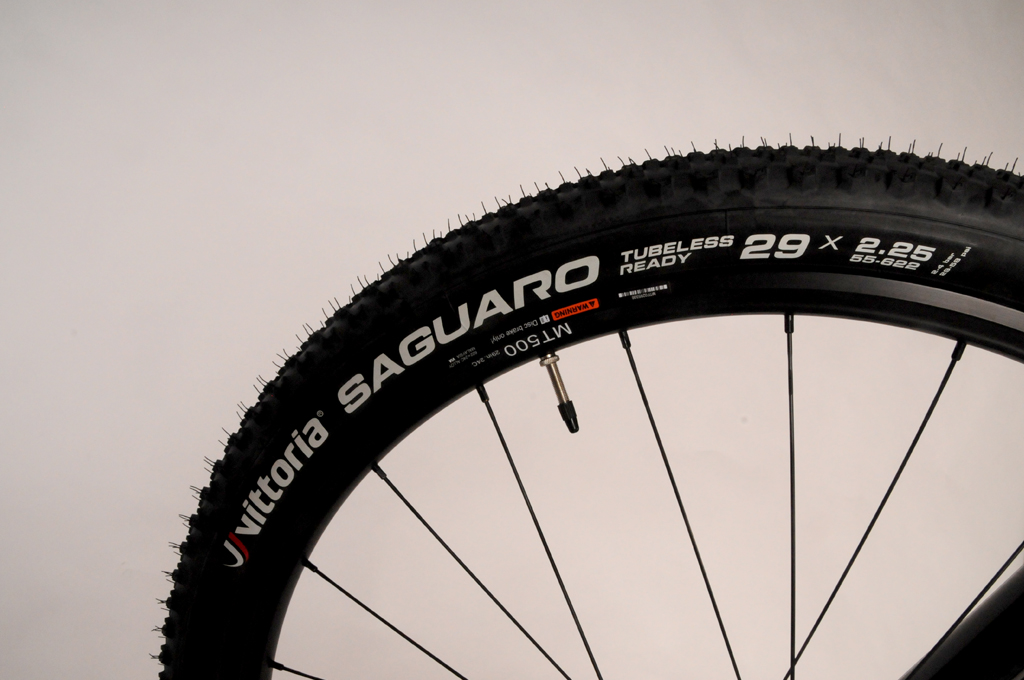

| Banden | Vittoria | Saguaro | Tubeless Ready 29x2.25 |

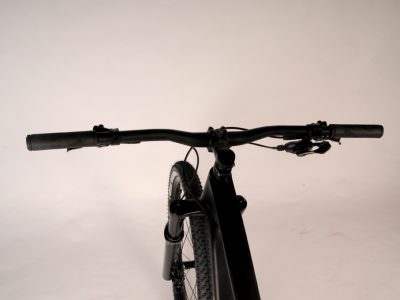

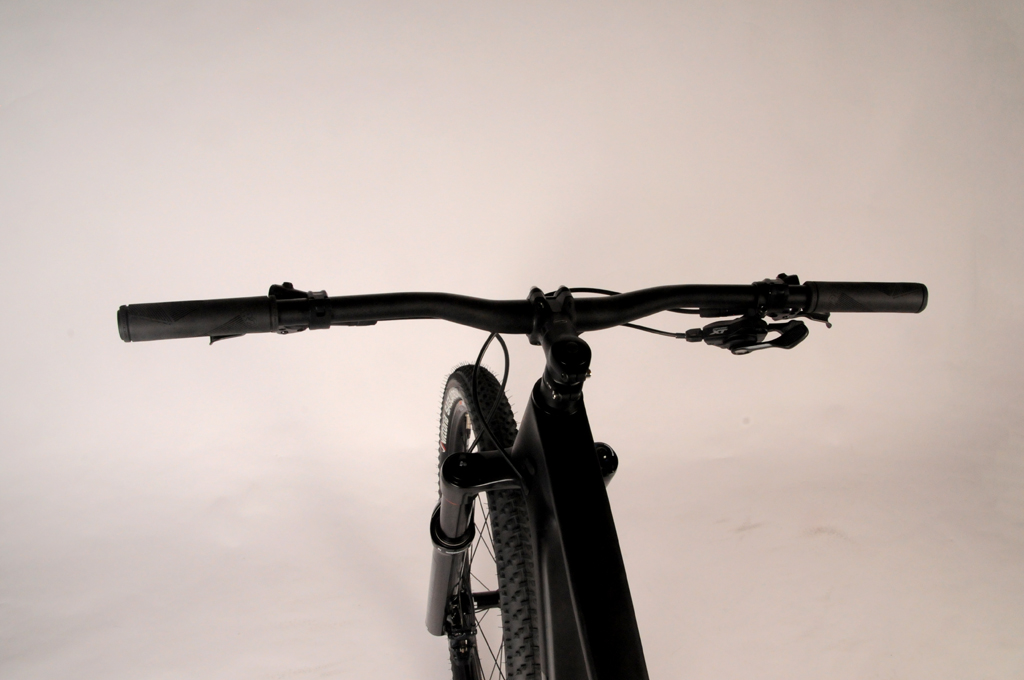

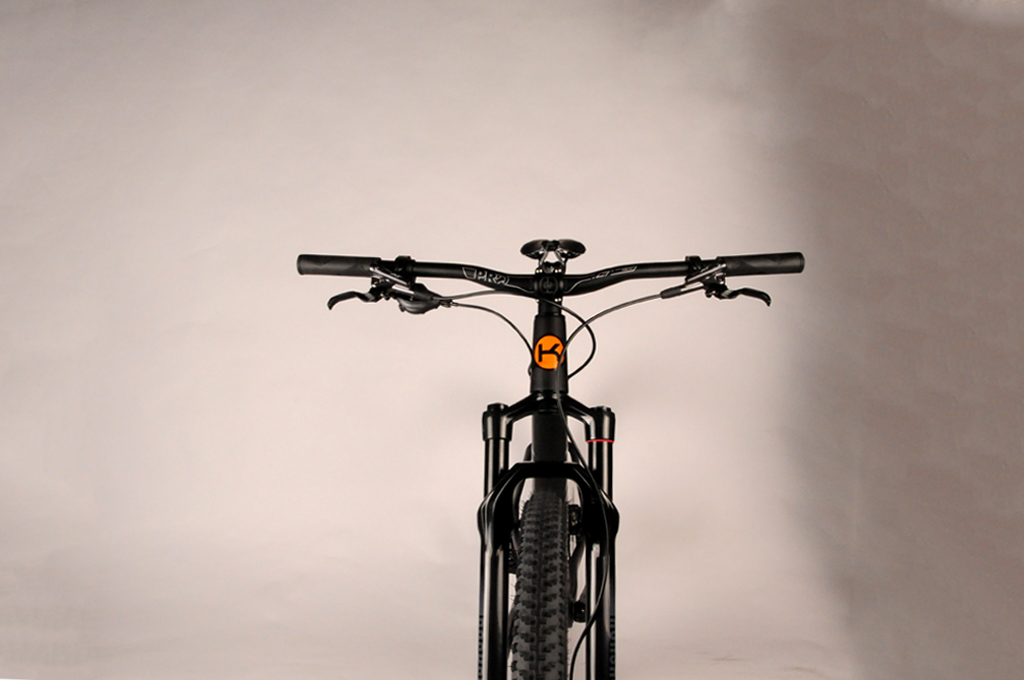

| Stuur | Pro | LT Low Rise | 720mm 31.8mm |
| Stuurpen | BRUT | AH17 | 31,8mm Diameter 70mm Lengte |
| Handvatten | Pro | Grip Slide On Sport | Zwart Kleur 30mm Diameter 125mm Lengte |
| Remmen | Shimano | XT M8100 | 2-vingers |
| Schijven | Shimano | SM-RT10 | 180mm |
| Shifters | Shimano | XT/SLX | 12-speed Shifter rechts |
| Crankstel | Shimano | Deore M6100 | 12-speed, 32T |
| Ketting | Shimano | SLX CN-M7100 | 12-speed, 126 Schakels |

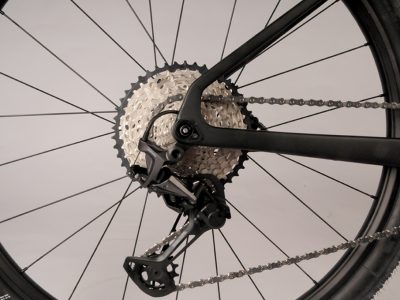

| Cassette | Shimano | SLX M7100 | 12-speed, 10-45T |
| Derailleur | Shimano | XT M8120 | 12-speed, Lange slag |
| Gewicht Krush Impact | S | M | L | XL |
|---|---|---|---|---|
| Shimano XT/SLX - MT500 wielset | ± 11,62 kg | ± 11,74 kg | ± 11,86 kg | ± 11,98 kg |
| Shimano XT/SLX - Infinito X3C wielset | ± 11,12 kg | ± 11,24 kg | ± 11,36 kg | ± 11,48 kg |
